M-102 (8 mile road) Bridge over Plum Creek
(A Precast PC Bridge in which CFCC was used as all tendons and reinforcements)
In State of Michigan, USA, there is a problem that reinforcements in concrete bridges significantly corrode by the adverse effect of de-icing salt that is scattered in winter, and bridges deteriorate in the early stage. This M-102 Bridge over Plum Creek also was replaced due to reinforcements' conspicuous degradation, CFCC was thoroughly applied for the new PC bridge as non-corrosive tendon, shear reinforcement and mild reinforcement. This bridge consists of 2 parallel PC bridges of east bound and west bound with precast PC box beams and pre-sterssed spread box beam superstructures of which concrete was placed at the site. M-102 is a major urban route into the city of Detroit, MI.

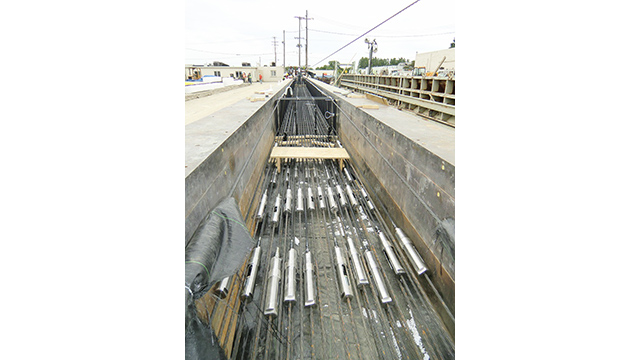

CFCC strands stressed in a mould for production of concrete beams

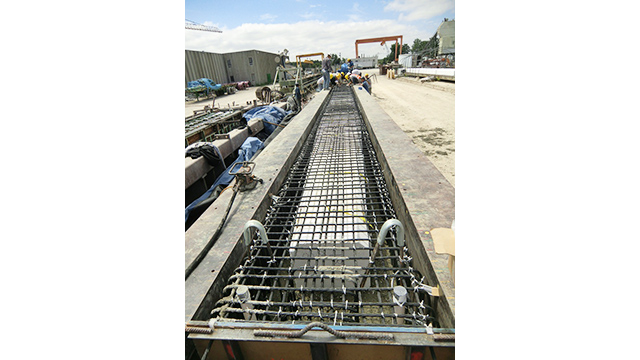

CFCC reinforcements deployed and fixed in the mould for production of concrete beams

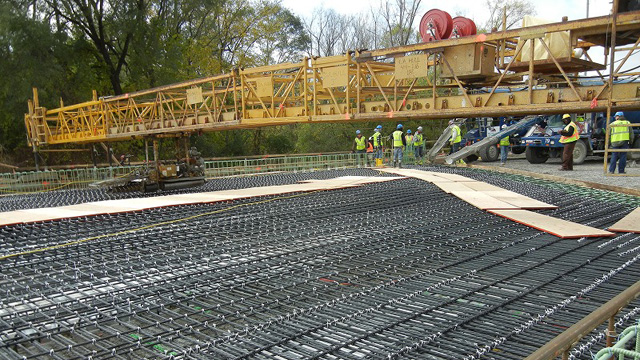

The beck slabs were reinforced with CFCC as mild reinforcement

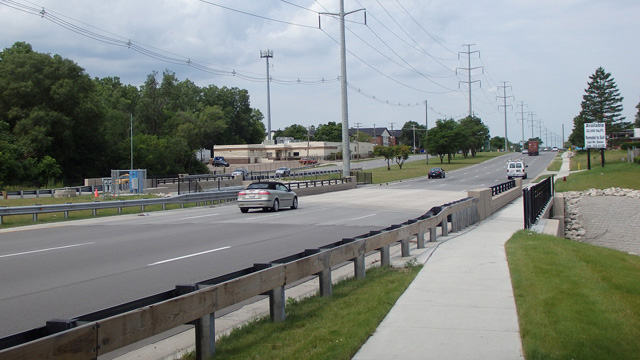

Overall view of M-102 bridge over Plum Creek
| Client | Michigan Department of Transportation(MDOT) | Location | Southfield, MI, USA |
|---|---|---|---|
| Dimensions | Bridge length: 23 m, Width: 19 m (East bound, West bound respectively) | Application | Tendons and Stirrups for PC box beam CFCC 1 x 7 dia. 15.2 mm Reinforcements for deck slub: CFCC 1 x 7 dia. 15.2 mm |
| Completion | East bound: 2013, West bound: 2014 |
